BC-99 BATTERY CHARGER
(Lead Acid Batteries Only)

Expected price $139.00US. (part # BC-99)

FEATURES

  • Same physical features as our regular panel with the addition of the smart charger circuit.
  • 12-Volt, 8 Watt microcontroller based charger and regulated voltage source.
  • Charges 12-Volt lead acid batteries and runs small 12-Volt appliances.
  • Three-state charger to maximize battery charging with out damaging battery.
  • Keeps battery "topped-off" without over charging.
  • LED  to indicate charging state and completion.
  • Reverse battery and short circuit protection.
  • Regulated 13.8 output voltage to prevent damage to small appliances.
  • NEED MORE POWER?  Wire more in parallel!
  • CANNOT BE CONNECTED IN SERIES!

BATTERY CHARGER SPECIFICATIONS

  • LEAD-ACID batteries only
  • Three-state charger: Bulk-Absorption-Float
  • Bulk charging current: Up to 630 MA
  • Peak absorption voltage: 14.3 Volts
  • Float voltage: 13.5 Volts
  • Maximum power: 8 Watts

WHEN USED AS A VOLTAGE SOURCE

  • Maximum output voltage: 13.8 Volts
  • Output current: Up to 630 MA
  • Maximum power: 8 Watts

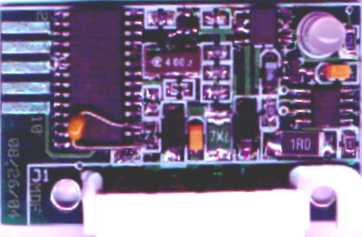

SMART CHARGER CIRCUIT BOARD

SMART CHARGER!

This is More Than A Trickle Charger
